NovaClamp end clamps are designed for securing the outermost panels at each end of a solar array row. They provide a clean, secure finish to the installation while ensuring reliable clamping force under wind uplift and thermal expansion conditions.

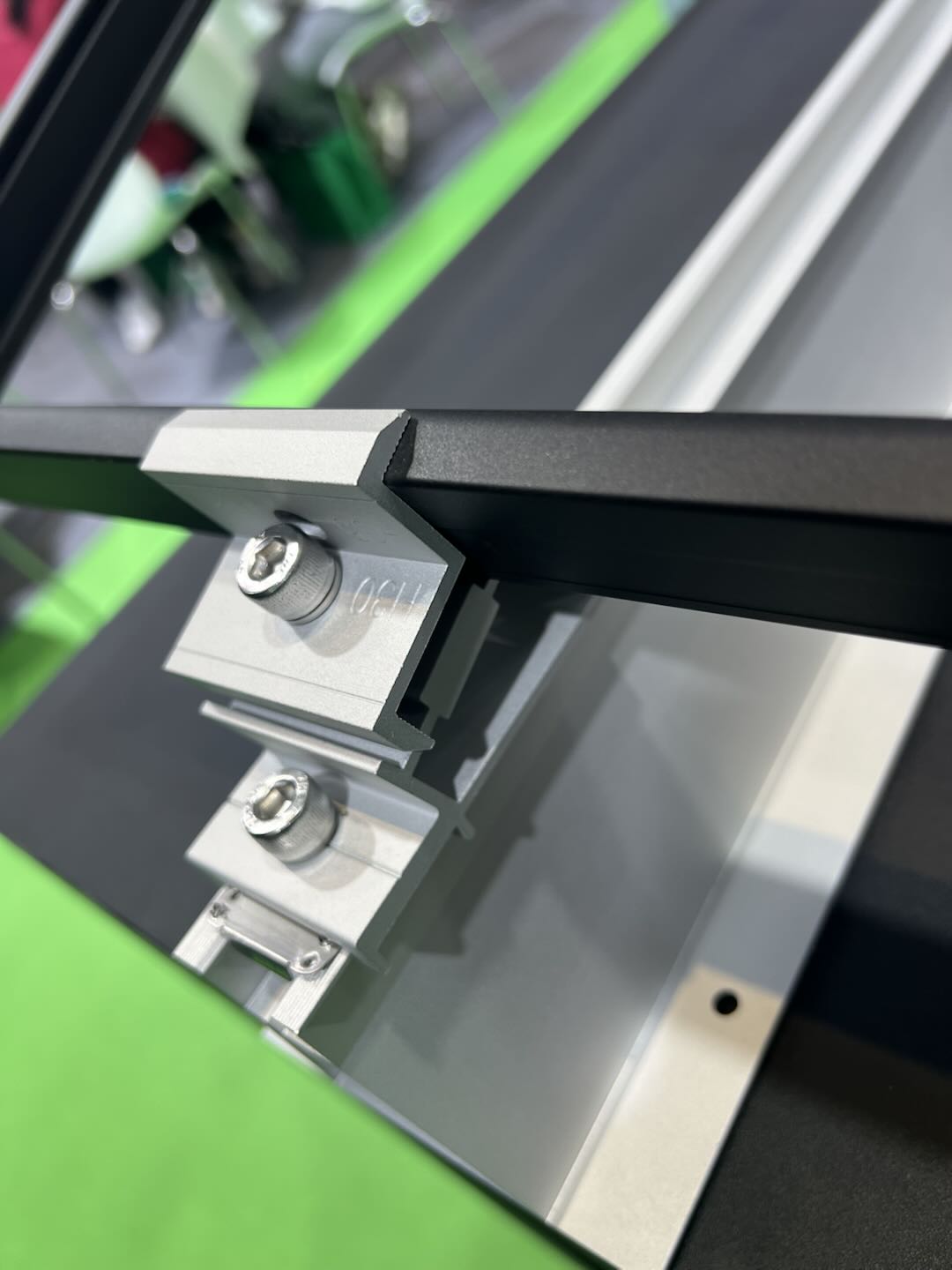

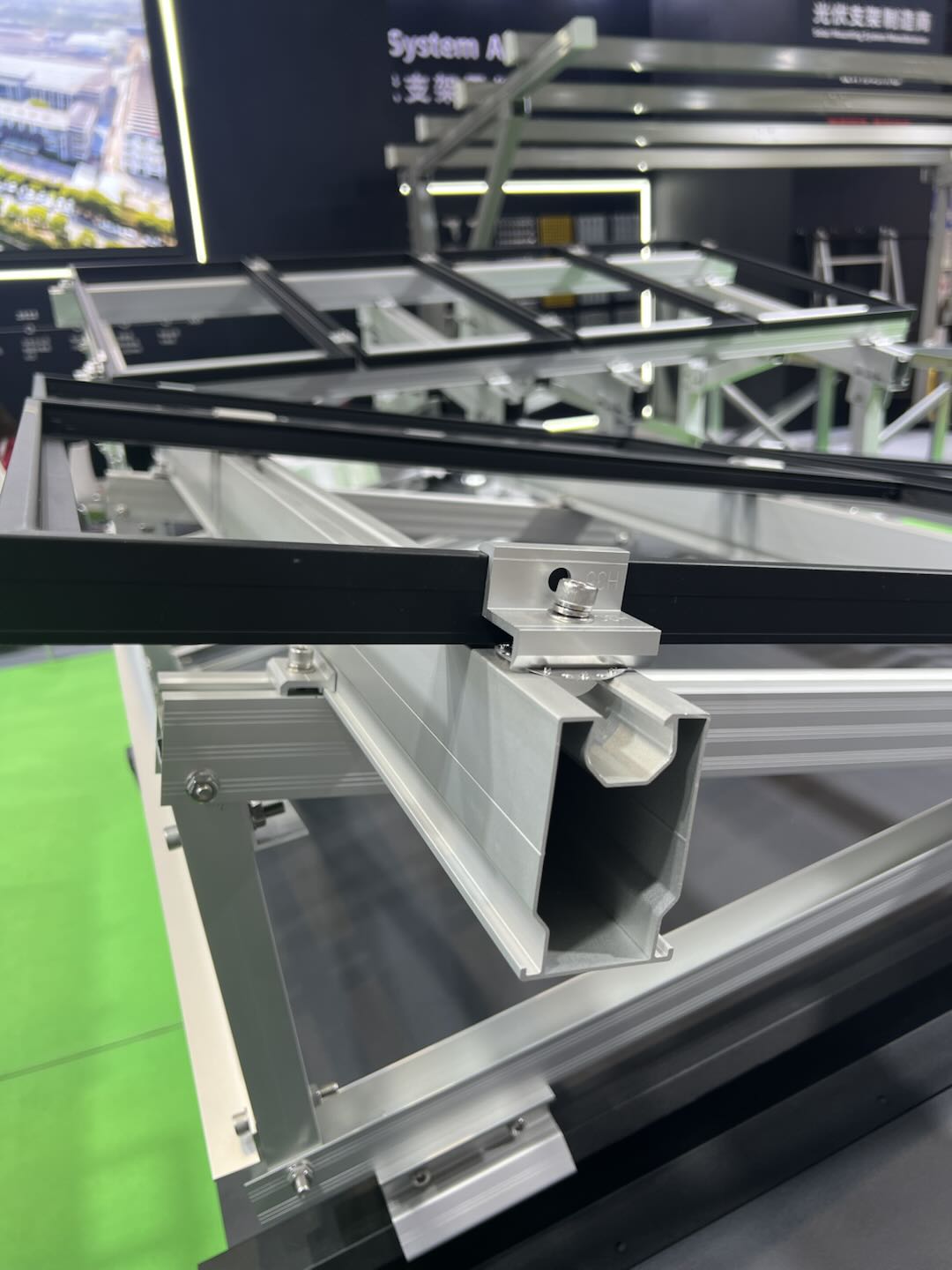

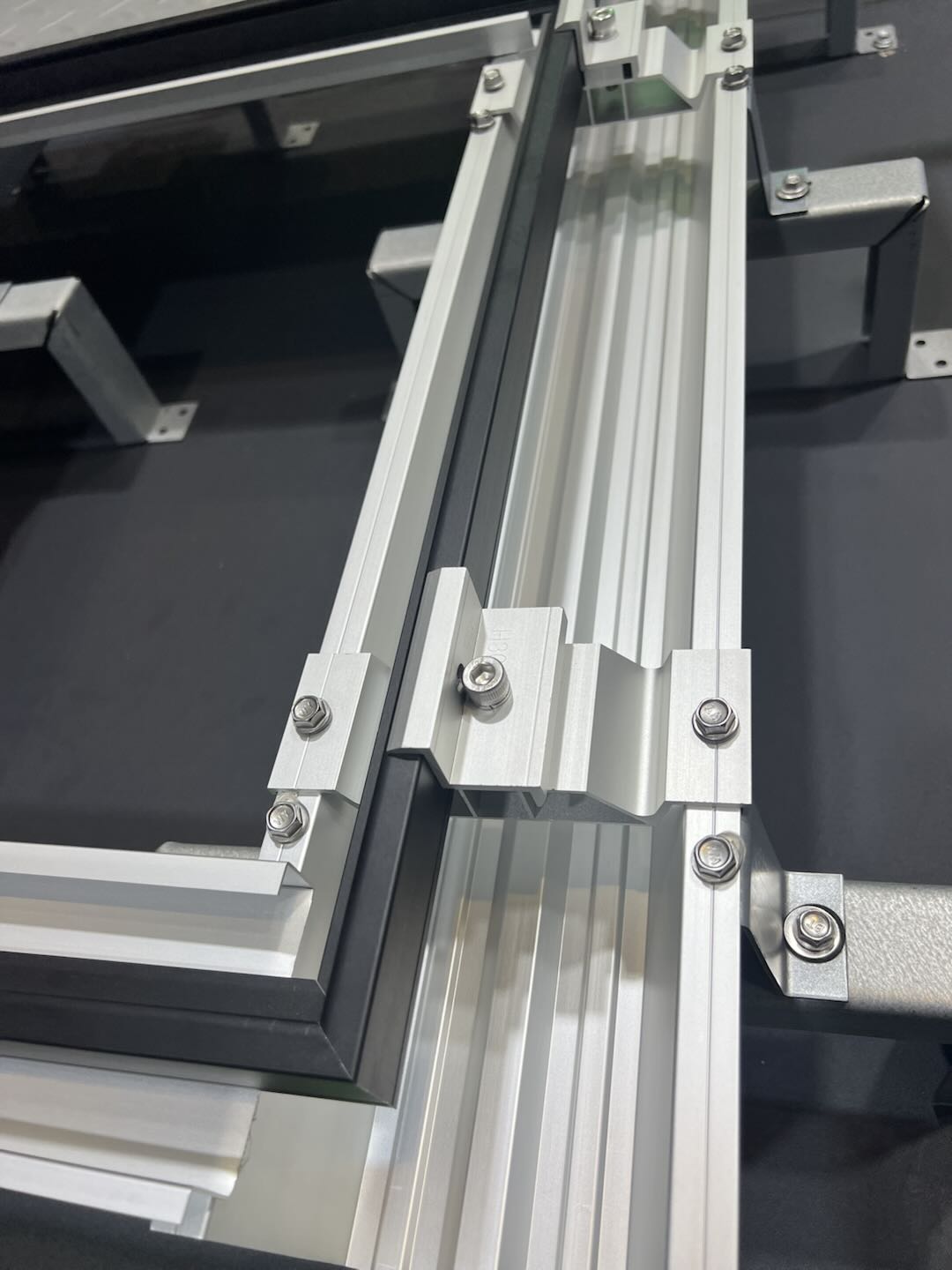

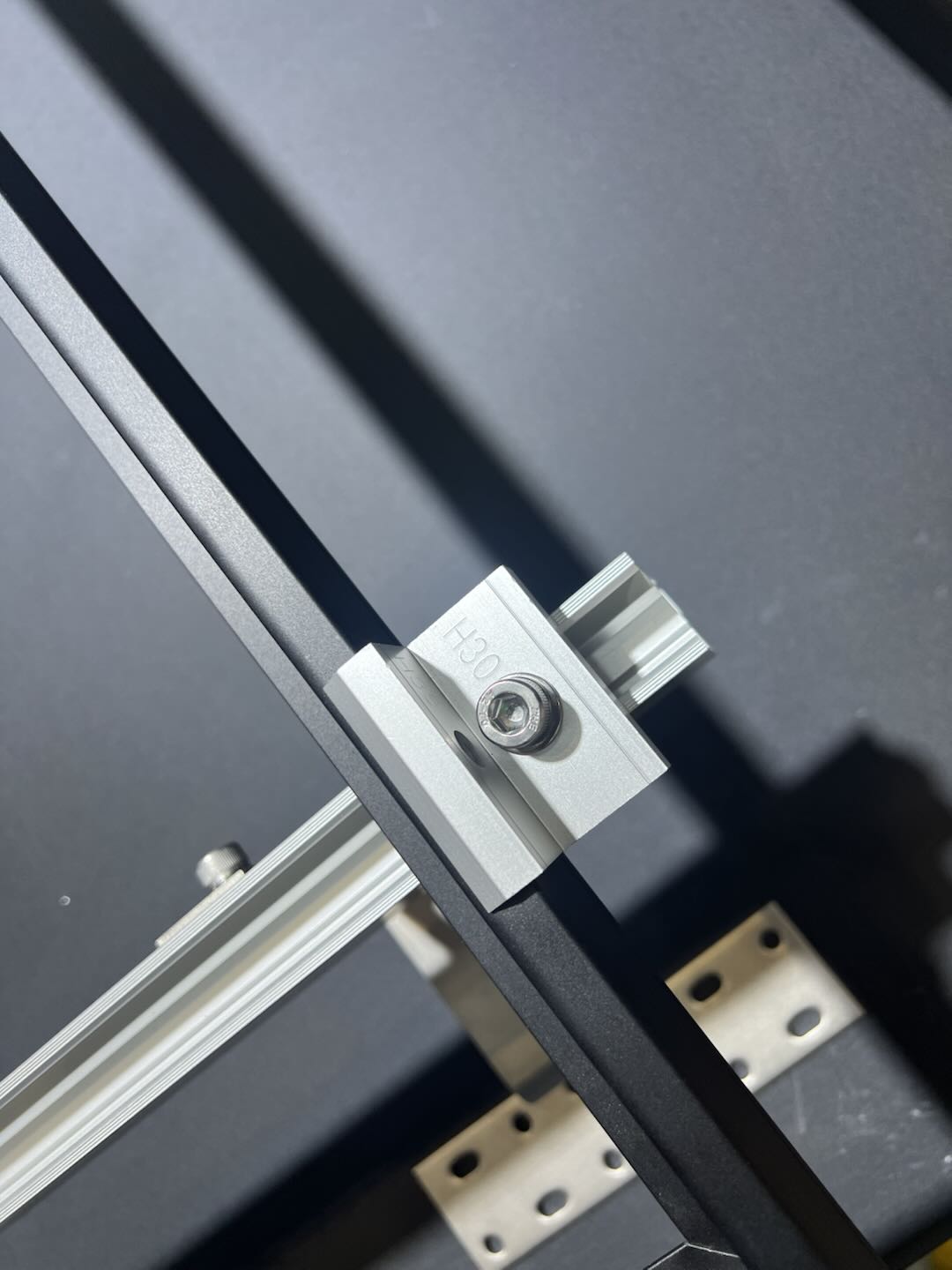

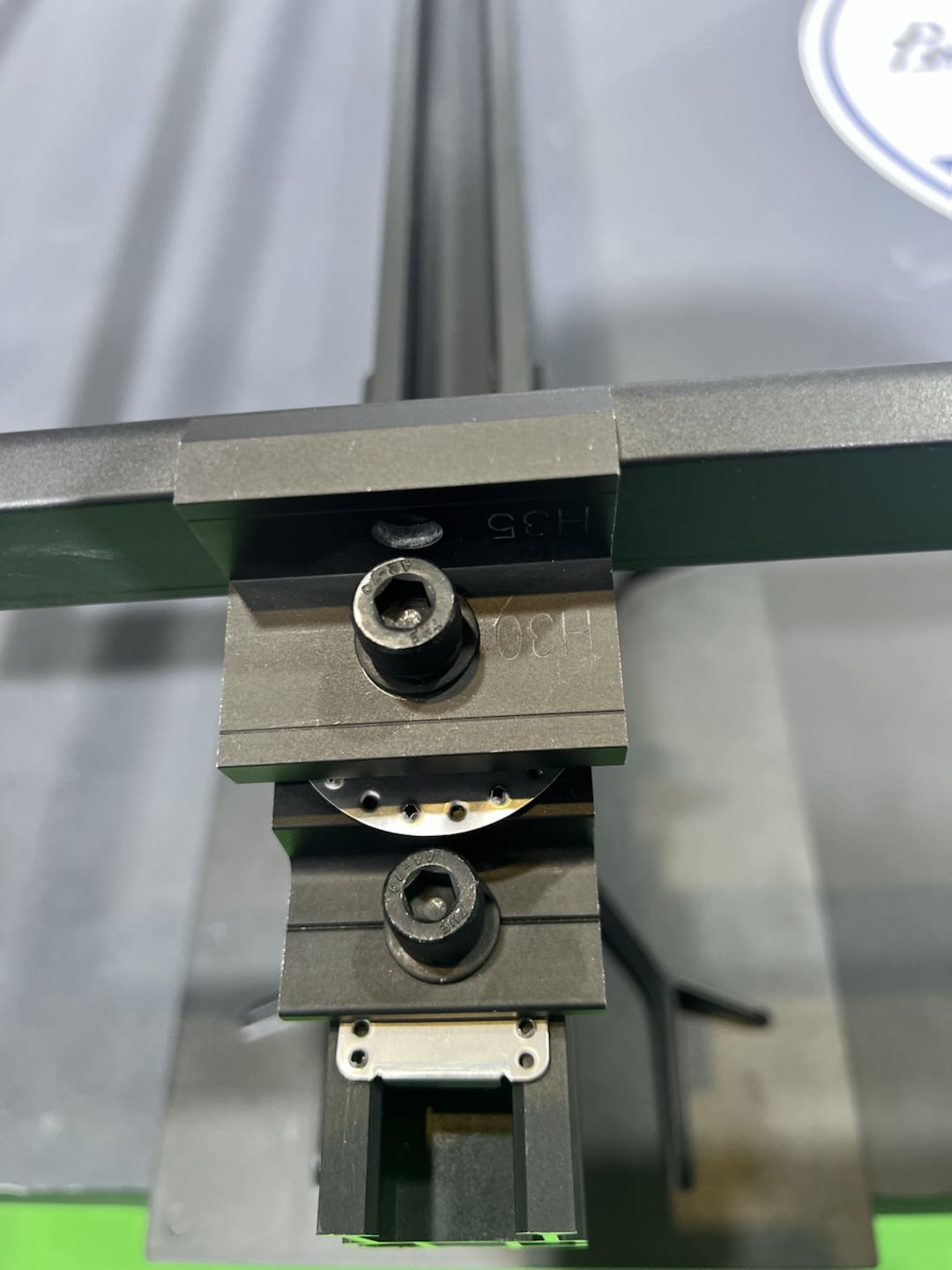

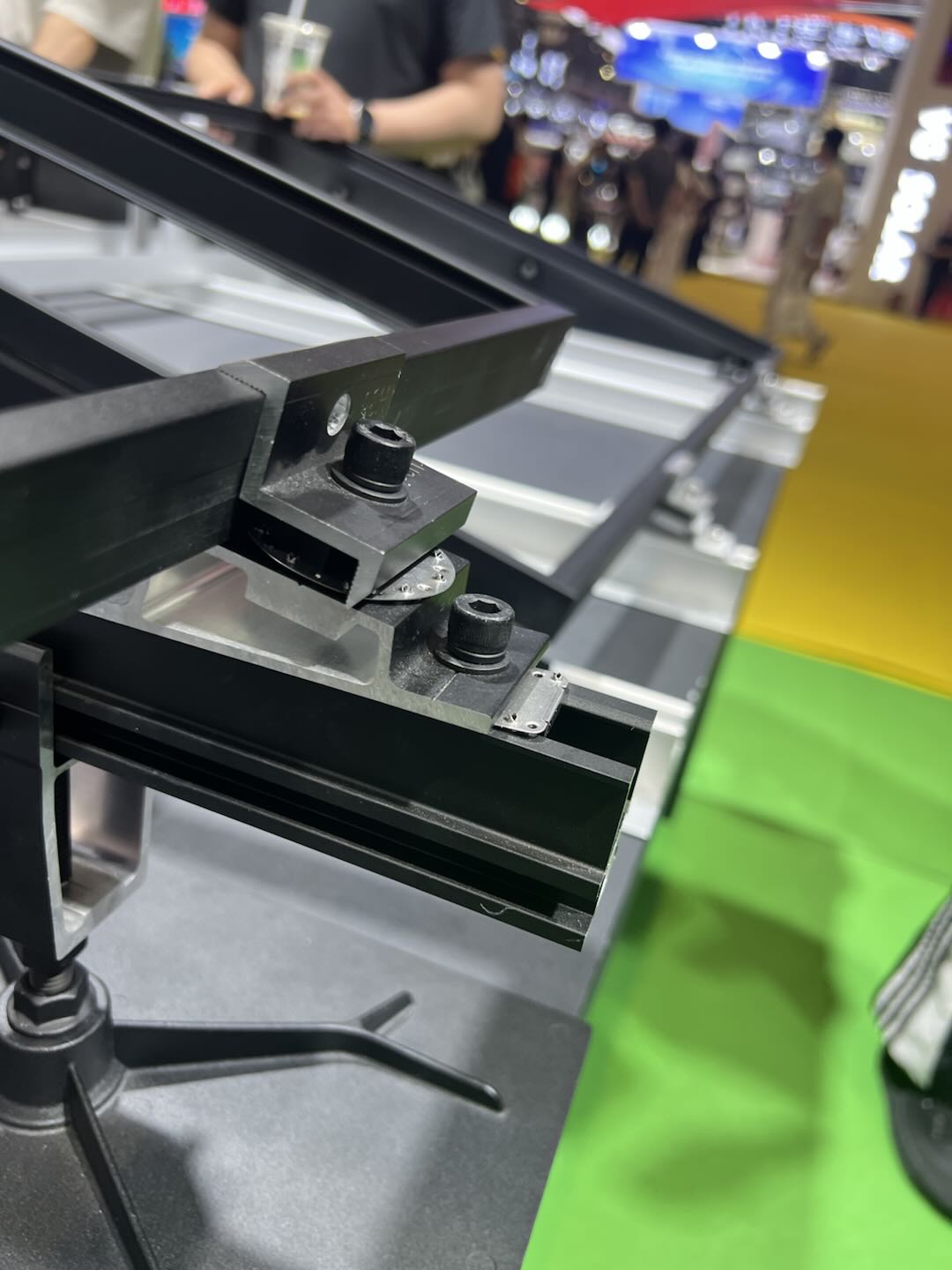

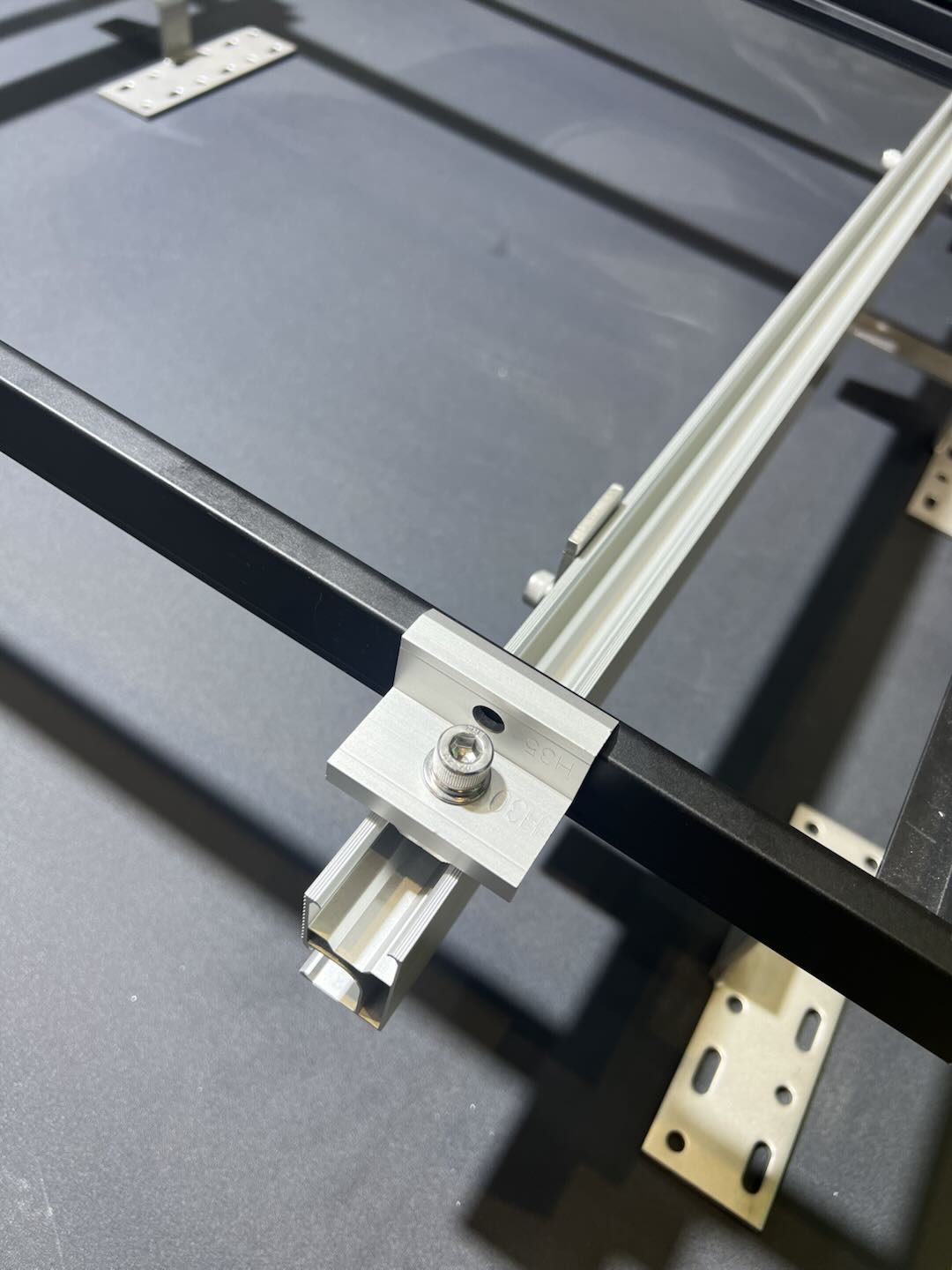

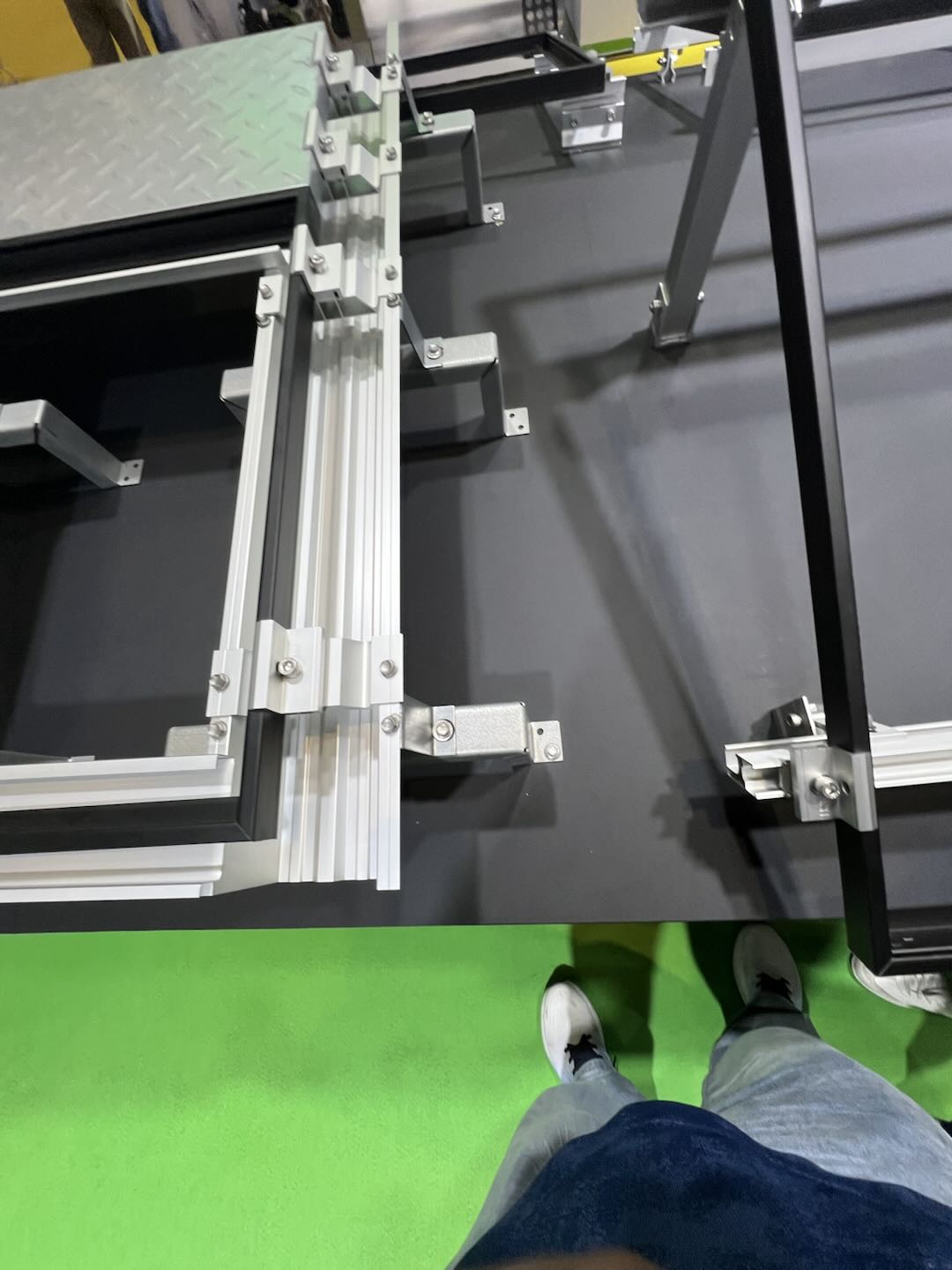

Product Gallery
1000+ h
Salt Spray Resistance
18–22 N·m
Recommended Torque
6005-T5
Aluminum Alloy
AA15
Anodizing Grade
Available Models
EC-30
For 30 mm frame • 38 g/pc • SUS304 M8×25 bolts
EC-35
For 35 mm frame • 40 g/pc • SUS304 M8×25 bolts
EC-40
For 40 mm frame • 42 g/pc • SUS304 M8×30 bolts
EC-50
For 50 mm frame • 46 g/pc • SUS304 M8×30 bolts
Specifications
| Material | Aluminum alloy 6005-T5 |
| Fasteners | SUS304 stainless steel (M8 hex bolt, spring washer, flat washer, nut) |
| Surface Treatment | AA15 anodizing, black or silver |
| Compatible Frame | 30 / 35 / 40 / 50 mm (select model accordingly) |
| Recommended Torque | 18–22 N·m |
| Salt Spray Test | ≥ 1,000 hours (ASTM B117) |
| Anodizing Thickness | ≥ 15 μm (ASTM B244) |
| Operating Temperature | -40°C to +85°C |
| Certifications | IEC 61215, IEC 61730, RoHS |
Dimensions
Typical end clamp dimensions (varies slightly by model):
- Length: 50 mm
- Width: 28 mm
- End cap height: Matches selected frame thickness + 8 mm
- Bolt thread: M8 × 1.25
What's Included
Each end clamp comes with:
- 1 × aluminum clamp body with end stop
- 1 × M8 hex bolt (SUS304)
- 1 × spring washer (SUS304)
- 1 × flat washer (SUS304)
- 1 × hex nut (SUS304)
Packaging
- Small orders: Poly bags, labeled with model and quantity
- Bulk orders: Export cartons (500–1,000 pcs/carton), palletized
- OEM: Custom packaging with your brand available
